High-Efficiency Nanocrystalline Cut Core PFC Inductor
MagComponent presents the JHNC0603 nanocrystalline cut core PFC inductor, specifically designed for inductive compensation PFC circuits and active PFC circuits. This high-performance component improves power factor and reduces reactive power, significantly enhancing power conversion efficiency.
Technical Specifications
Product Model: JHNC0603
Basic Information
- Origin: China
- HS Code: 8504500000
- Product Dimensions: 69×53×40mm
Packaging & Compliance
- Packaging Dimensions: 5.00×5.00×4.00cm
- Gross Weight: 0.300kg
- Professional Manufacturing: 10+ Years Experience
Performance Characteristics
Core Material
Utilizes nanocrystalline magnetic core with FR-4 base for easy PCB layout design
Wide Bias Range
Supports constant bias range of 0-50 Oe for versatile applications
High Permeability
Features high linear permeability with μ ≥ 180 for superior performance
Low Loss
Exhibits extremely low high-frequency loss characteristics
Stability
Excellent frequency characteristics and temperature stability
Quality Assurance
Professional manufacturing with 10+ years industry experience
Detailed Electrical Characteristics
Electrical Parameters
Inductance
5.1mH ±30% @60Hz/1.0V
DC Resistance (DCR)
Maximum 900mΩ
Rated Current (IDC)
Maximum 15.0A
Permeability
μ ≥ 180 (High linear permeability)
Safety & Testing
Withstand Voltage Test (Hipot)
1500Vac 5mA/3Sec (coil-core)
Interlayer Short Circuit Test
1600Vac @60Hz
Operating Temperature
-25°C to +85°C
Storage Temperature
-40°C to +85°C

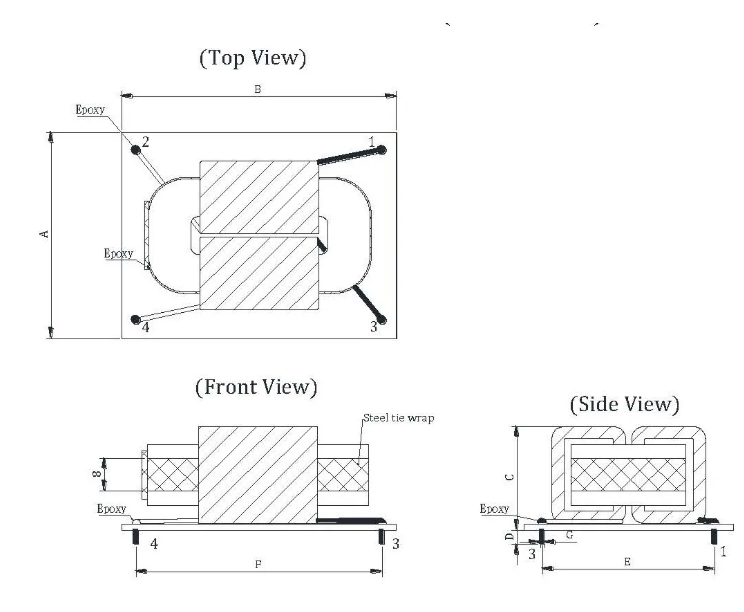

Product Dimensions
Product Dimensions: 69×53×40mm
Application Areas
Power Factor Correction
Widely used in variable frequency air conditioner power supplies, UPS switching power supplies, plasma TVs, etc.
Filtering
Suitable for output filter inductors in switching power supplies and converters
Noise Suppression
Differential mode noise filter inductors for electromagnetic compatibility
About MagComponent
MagComponent is a professional manufacturer specializing in nanocrystalline, amorphous cores, power inductors, and transformers. With over 10 years of industry experience, we are committed to establishing win-win business relationships with global customers.
Deep Customization
We provide product customization services according to your specific requirements
Professional Design
Senior engineers can design exclusive packaging structures for you
Quality Commitment
12+ years industry experience, all products come with 3-5 year warranty
Frequently Asked Questions
What is the main application of this PFC inductor?
This PFC inductor is specifically designed for inductive compensation PFC circuits and active PFC circuits, improving power factor and reducing reactive power to enhance power conversion efficiency.
What is the inductance tolerance and measurement conditions?
The inductor provides 5.1mH inductance with ±30% tolerance measured at 60Hz/1.0V, ensuring stable performance in PFC applications.
What are the safety testing standards for this product?
The JHNC0603 PFC inductor undergoes withstand voltage testing at 1500Vac 5mA/3Sec (coil-core) and interlayer short circuit testing at 1600Vac @60Hz.
What is the operating temperature range?
This inductor operates reliably within a temperature range of -25°C to +85°C, with storage temperature range of -40°C to +85°C.
Can you provide custom specifications for specific applications?
Yes, we offer comprehensive customization services for special requirements and performance specifications based on your specific design needs and application requirements.
